Would you climb above this?

Penny

8/06/2012
11:43:47 AM

On 8/06/2012 kieranl wrote:

>I think you're quite wrong. Any load on the hex will tend to compress
>the cam, which has no resistance to compression, fatally weakening the
>placement. Just because the hex has a cord on it doesn't mean it should
>be used.
>I'll see if I can try it out this afternoon and let you know (day off
>:) )

If you're a fatty like me I bet you'll fatally weaken the system with any load on the cam too! Do be careful :)

Olbert

8/06/2012
11:52:53 AM

As for an actual physical analysis (assuming you weight the cam, weighting the hex would be suicidal)

First: Friction

Cams rely on friction to work, if the coefficient of friction is not high enough between the aluminium cam and aluminium hex then the cam will slide right out (the concave hex *might* stop this). Despite my initial gut feeling the coefficient of friction between aluminium and aluminium is roughly four times that of aluminium and rock. That means cams would work four times better if placed in an aluminium crack than a rock crack!

So there are no worries about sliding.

Second: Stability

Before weighting anything the hex is held in place by being pushed against the rock by the cam (and vica versa). The force of this push is dependant mainly on the strength of the springs inside the cam. If the springs are strong enough the rig will stay in place in a static situation. If the hex is too heavy it will fall apart before you can set it properly. It's pretty apparent that in this case the cams springs are strong enough.

Third: Weighting

What happens when you weight it? Well as any quick googling of cams will tell you, all the downwards force is opposed by the upwards holding force. The upwards holding force is made up mostly of two equal and opposite forces pushing outwards with only a little bit in the downwards direction.

Side note: Pulling 1kn down on a cam in a parallel crack will result in a the cam pushing outwards at 1000/(sin(alpha)) where alpha is the caming angle, normally approximately 14 degrees. So the outwards force is ~4.1kN.

If the direction of that outwards force which originates from the point of contact between the cam and the hex runs through the point at which the hex is flush with the rock, then everything is stable. If it runs below the section of hex/rock contact then the whole thing is going to want to roll downwards in an exploding manner when weighted. (This would be much simpler with a drawing but that's way to much effort.)

On the face of it, a strong tug would show you whether or not it's stable because nothing is going to slide (coefficients of friction are too high).

All that said, I would imagine the whole set up to get super untrustworthy with any movement. I would be putting at least a standard sling on the cam so that it doesnt move and be super careful not to knock it whilst climbing past. I would also be crying.


cruze

8/06/2012
11:57:32 AM

If I had to think that much before placing gear I'd be crying too!


Big G

8/06/2012
12:01:52 PM

I reckon the whole thing would look a lot more bomber (if at all!) if the hex was placed upside down. the cam would sit a bit better against the hex and might seat it a little bit better with the wider part of the hex at the bottom.

maadness

8/06/2012
8:48:27 PM

Could this be the start of a 'how many pieces of gear can you jigsaw together' competition?

kieranl

11/06/2012
5:08:46 PM

Did a little light testing this evening. I used one of the old-style 11 hexes with straight sides. The placement was OK but not ideal, the hex didn't sit neatly for it's full length.

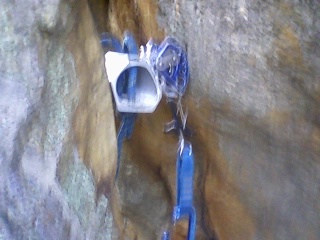

I first tried it with the hex in its normal orientation when used as a nut (as shown in the first photo in the thread). I then put the hex "upside down" (see crappy photo here, sorry my phone is very old and camera poor).
1. Any weight on the hex caused the placement to fail.
2. With hex In "normal" orientation the placement held some weight and survived a gentle bounce test. It then failed a more slightly robust bounce test.
3. With hex in the "upside down" position the placement held a more vigorous bounce test than the "normal" one failed at. The hex tries to rotate on the bottom edge which looks quite spooky. Also note that the cam has the 2 inner cams against the hex rather than the outer ones. It may not make a difference but it seemed to me that this orientation might have a little more tolerance.

My testing was fairly limited as the location didn't lend itself to full-on bounce testing but it would definitely be an OK aid placement, probably about M3 if it was in the middle of a string of solid placements. You would definitely worry about security.
Would I free-climb above it? I'd prefer not to as it doesn't appear very stable. I would be terrified if I had to lower from it. If you're actually carrying hexes, stacking 2 hexes together would be a better proposition then this as they can be very secure.
